• Quantity: 1

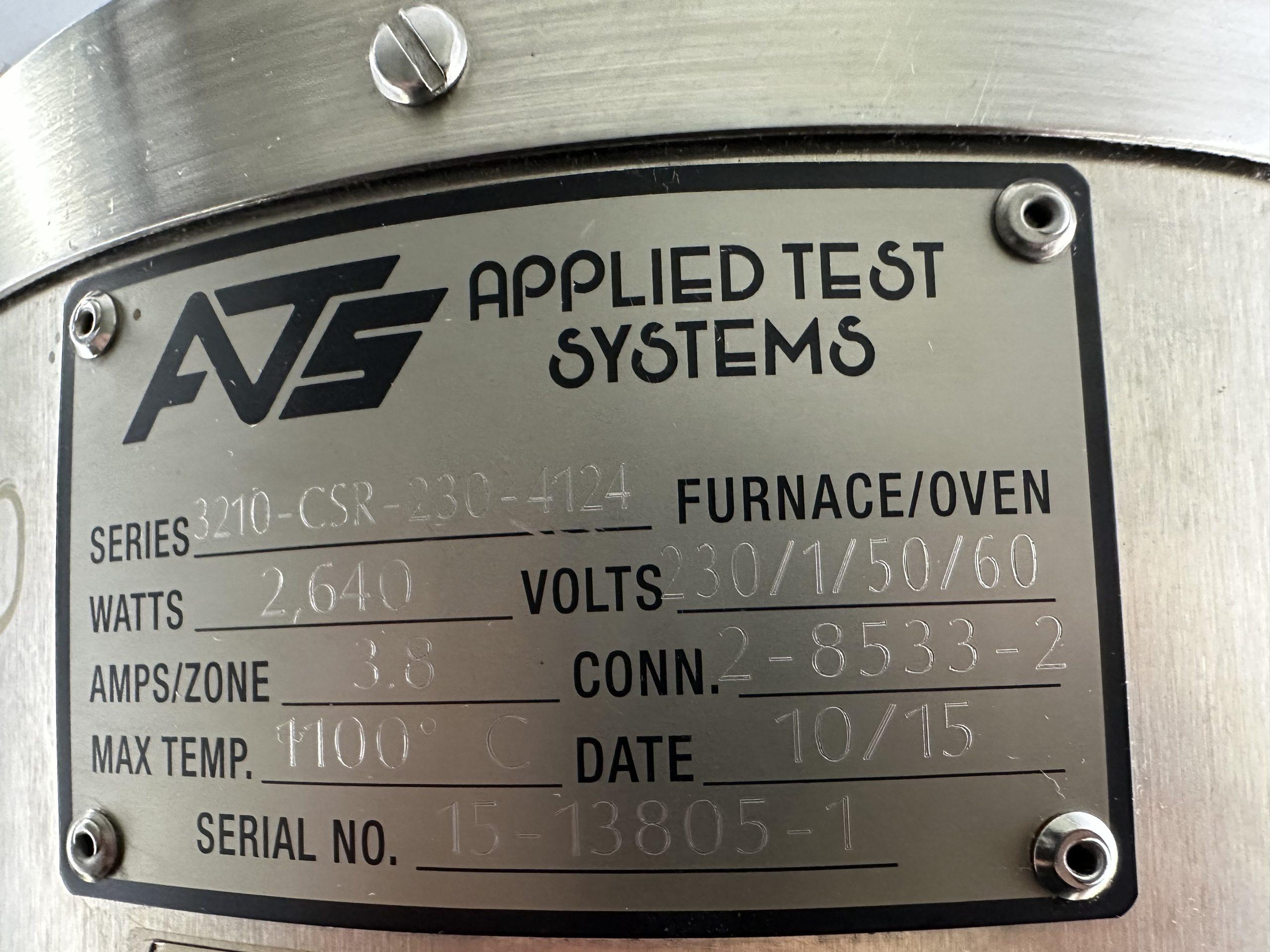

  • Serial Number: 15-13805
  • Price: Please Call or Email For Pricing.

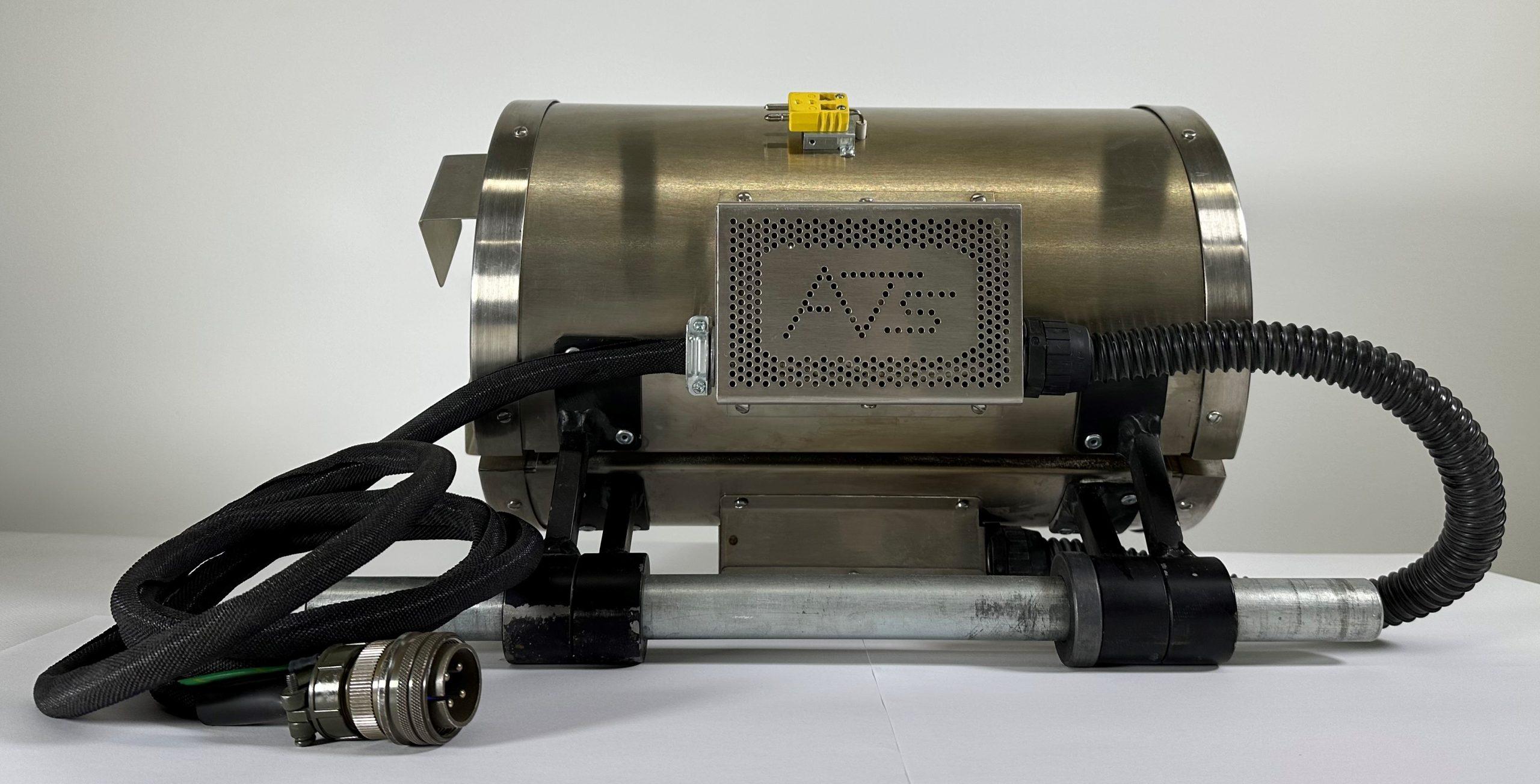

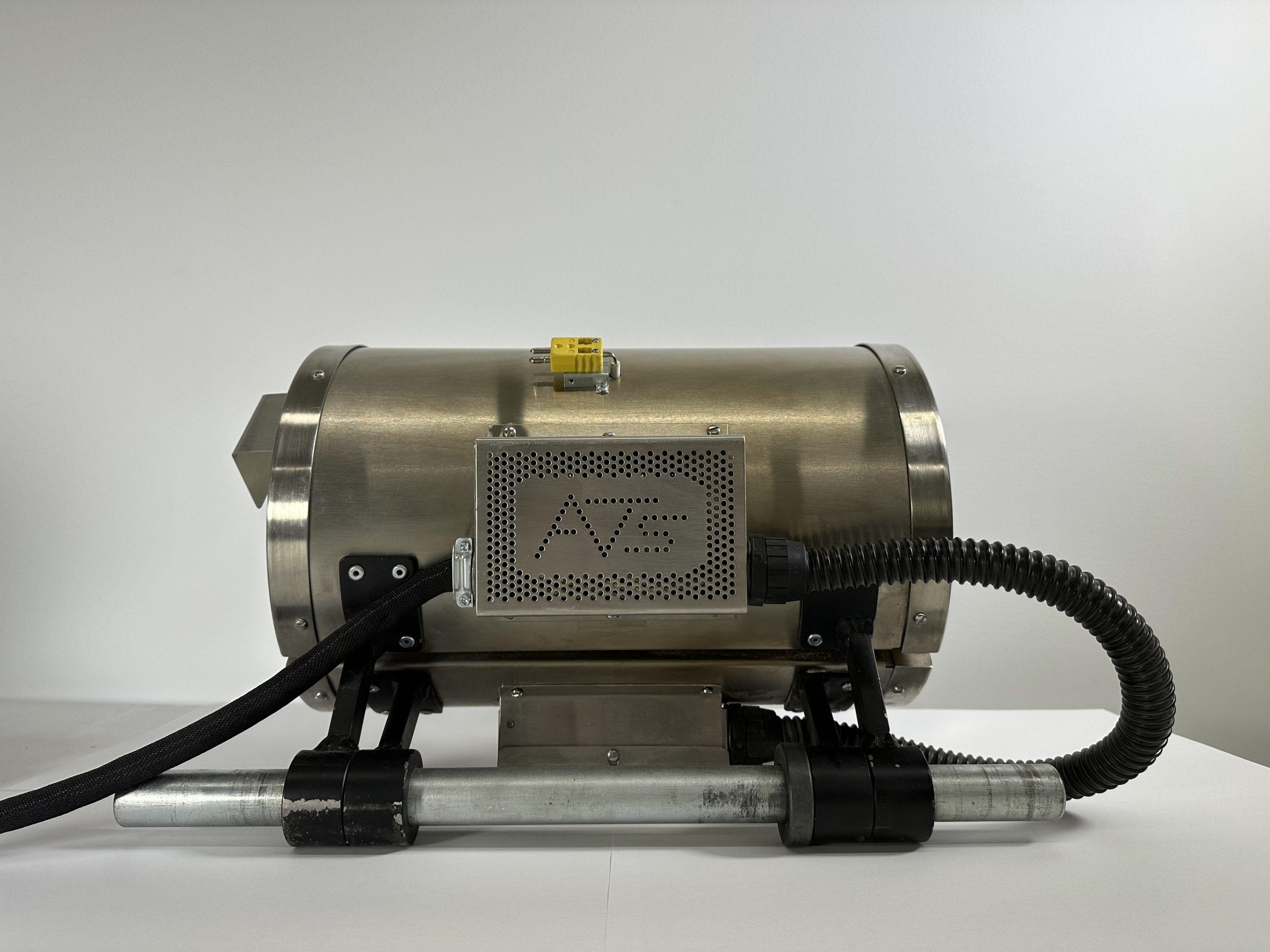

  • Description:
    • Dimensions: 3 in I.D. x 10 in O.D. x 16 in long.
    • Elements: Kanthal A1 for 1205 deg C. (2200 deg F) service with embedded winding.
    • Maximum furnace temperature rating: 100deg C.

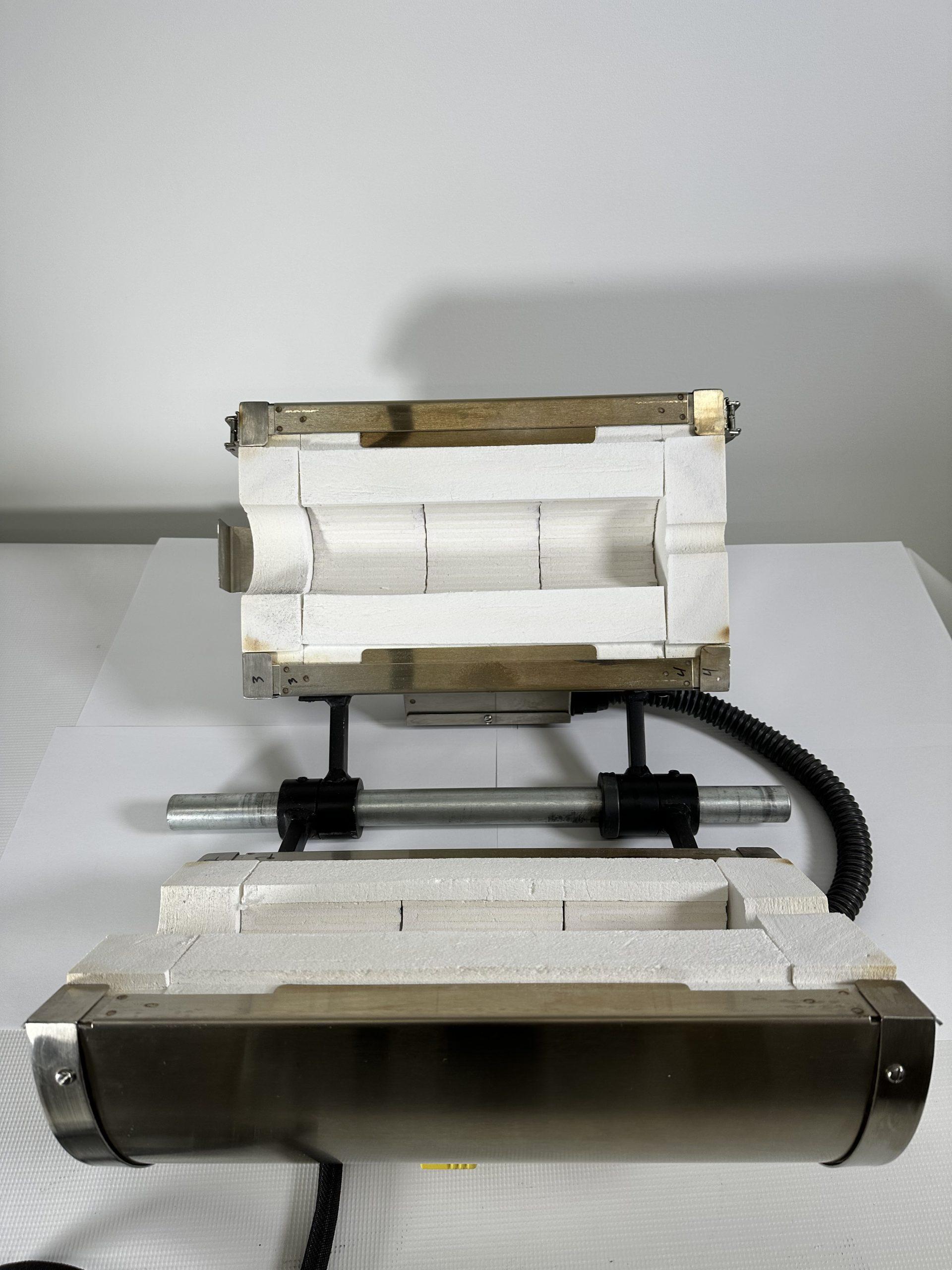

    • Zones: 3-Zone construction, each zone 4 in long, 12 in heated length.
    • Power: 880 watts/3.8 amps per zone, total power 2640 watts @ 230 VAC, 1Ph, 50/60 Hz.
    • End bore:
      • Upper: 1-inch diameter
      • Lower: 3-inch diameter

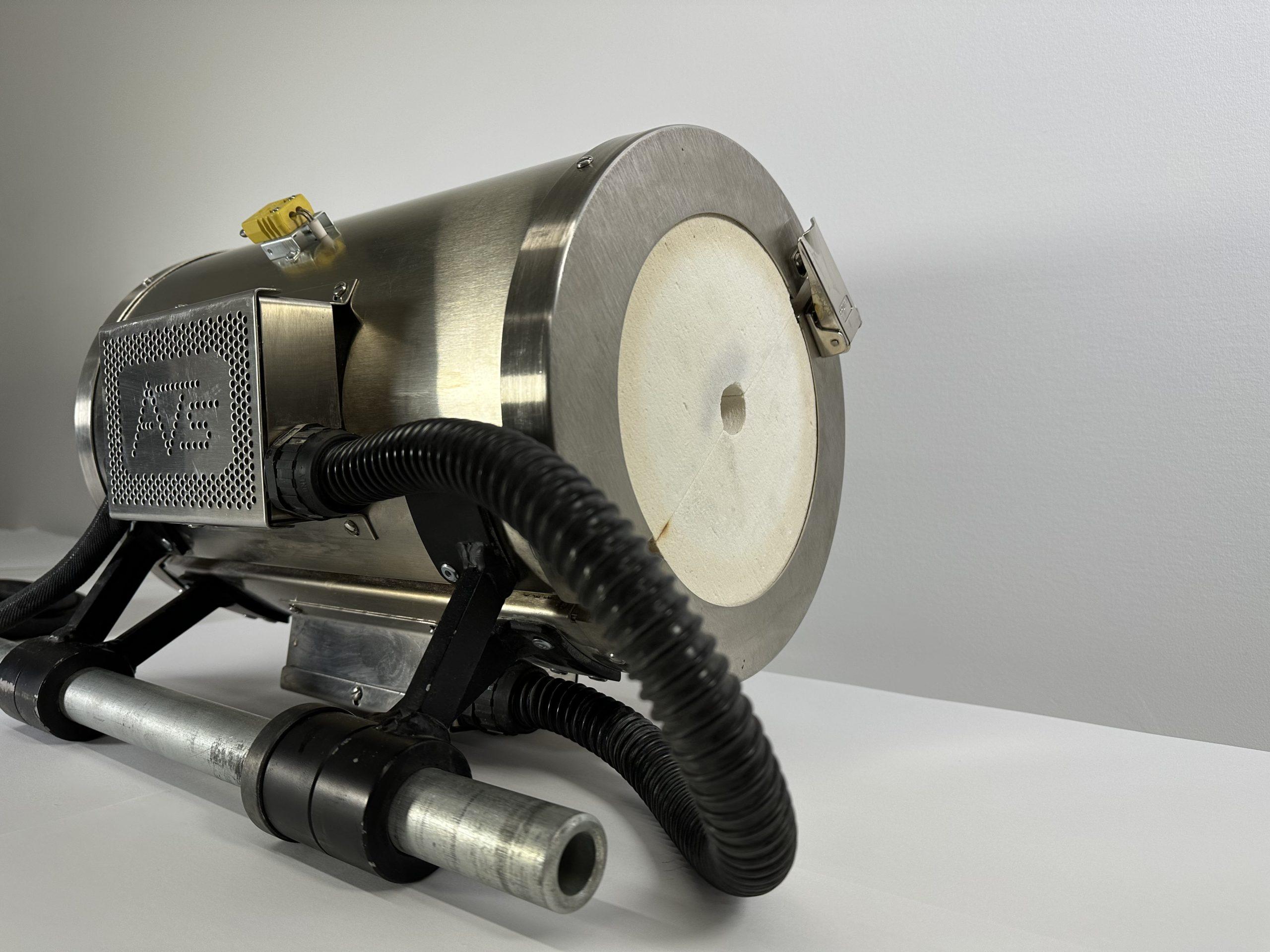

    • End caps:
      • Upper: 1 1/2 in. thick x 3/4 in. I.D.
      • Lower: 1 1/2 in. thick with port to fit 3/4 in pull rod and Series 4124 or 4124A Extensometer.



    • 1/4 inch thermocouple type “K” located mid-length in center zone.
    • (1) Thermocouple, type K with ceramic insulator and connector with mounting bracket.
    • Split Furnace Mounting Bracket.

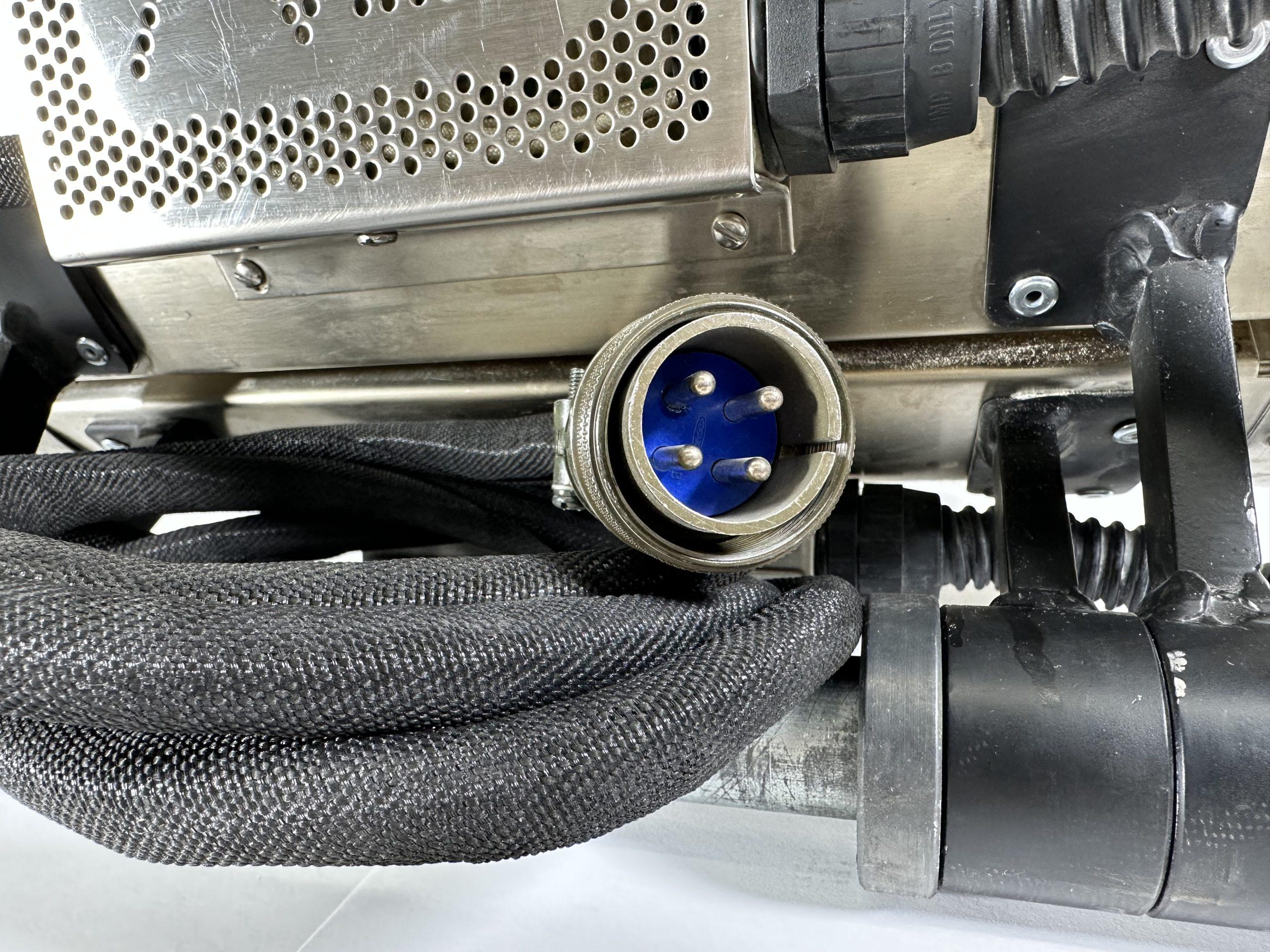

    • Furnace Power Cable (6 ft.)



    • Small container of embedding cement




Please Contact Sales or call us at +1.724.283.1212 if you have any questions regarding this furnace! We can provide additional photos and information upon request!
